High Pressure Flexible Hose Assemblies for Gases High Pressure Flexible Hose Assemblies for Gases
Hydroflex Pipe Pvt Ltd. is manufacturing annular corrugated stainless steel flexible hoses for high pressure gases.
We are using highly flexible annular corrugated stainless steel flexible metallic hoses ANSI 316L with ANSI 304 double wire braiding Size: DN 6 is 400 bar working pressure and busting pressure is 1200 bar. We will provide end fittings both end 1/4" NPT female type and also provide fittings suitable for gas cylinders valve, Hose conform to BS 6501, Part-1:2004 / ISO 10380:2012.

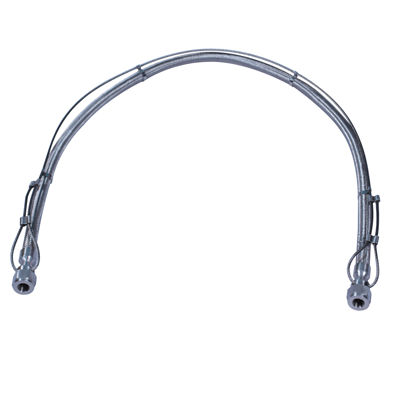

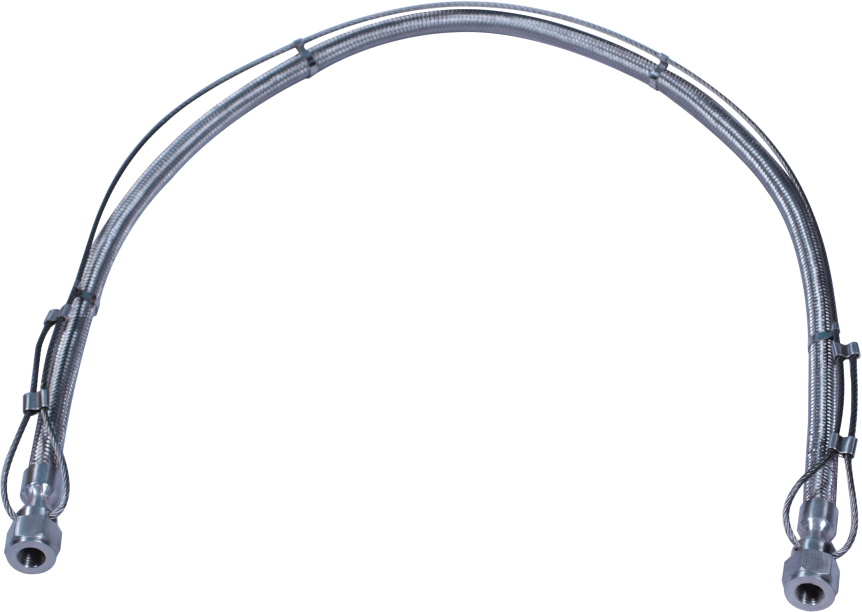

High Pressure Flexible Hose Assemblies for Gases
| Specification | |
|---|---|
| Hose Material | AISI 316L (DIN EN 1.4404) |
| Braid Material | AISI 304 (DIN EN 1.4301) / AISI 316L (DIN EN 1.4404) |
| Braid Type | Double Wire Braided |
| Hose Size | DN 6 (1/4" NB / 6.4 MM ID) |
| Hose Length Overall | 500 mm, 750 mm, 1000 mm, 1500 mm, 2000 mm, 3000 mm |
| End Fittings | 1/4" NPT Female Fixed / Suitable for Gas Cylinders Valve |
| End Fittings Material | AISI 316L (DIN EN 1.4404) |
| Over Wire Rope | AISI 304 (DIN EN 1.4301) / AISI 316L (DIN EN 1.4404) |
| Max. Working Pressure | 400 BAR @ 20° C |
| Testing Pressure | 600 BAR |
| Burst Pressure | 1200 BAR |
